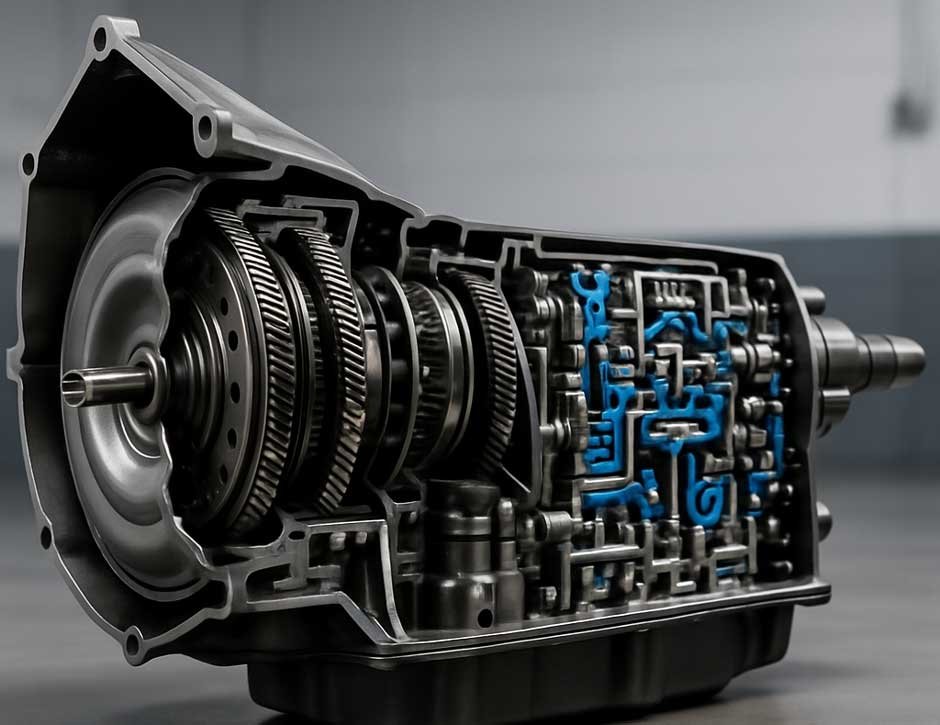

Introduction to 4L80E Manual Valve Body
If you’ve ever dealt with a failed 4L60E in your high-performance build, you know the frustration of electronic transmission limitations. The 4L80E manual valve body conversion has become the go-to solution for enthusiasts who want bulletproof reliability without sacrificing performance. Originally found in GM’s heavy-duty trucks and SUVs, the 4L80E transmission has proven itself capable of handling serious power while maintaining the overdrive capability that modern drivers expect.
What makes the 4L80E special isn’t just its strength – it’s the fact that it’s essentially a four-speed TH400 with an extra gear. Anyone familiar with the legendary TH400 knows its reputation for durability, and the 4L80E carries that same DNA. The rear section is nearly identical to the TH400, which means decades of proven performance technology backs up this transmission.
Here’s where things get interesting: while the stock 4L80E relies on computer control for shift timing and torque converter lockup, a manual valve body conversion strips away all that electronic complexity. You’re left with a transmission that shifts when you tell it to, not when a computer thinks it should. For racers, off-road enthusiasts, and anyone building a serious performance machine, this level of control is invaluable.
The beauty of the 4L80E manual valve body setup lies in its simplicity. No more worrying about ECM compatibility when swapping engines. No more electronic failures leaving you stranded. Just a robust, manually controlled transmission that can handle whatever you throw at it while still giving you that crucial overdrive gear for highway cruising.
Whether you’re building a drag car that needs precise shift control, an off-road rig that demands reliability, or a street machine that requires both performance and drivability, the 4L80E manual valve body offers a proven solution that countless builders have relied on for years.
Benefits of 4L80E Manual Valve Body Conversion
Let’s be honest – electronic transmissions can be a nightmare in modified vehicles. I’ve seen too many builds sidelined by transmission control module failures or compatibility issues with aftermarket engine management systems. The 4L80E manual valve body conversion eliminates these headaches entirely by removing the electronic control system from the equation.
The reliability factor alone makes this conversion worthwhile. When you’re at the track or deep in the backcountry, the last thing you want is an electronic glitch leaving you dead in the water. Manual valve bodies operate on simple hydraulic principles that have been proven reliable for decades. No sensors to fail, no wiring to corrode, no computers to confuse – just mechanical reliability you can count on.
Performance-wise, the difference is immediately noticeable. Stock electronic transmissions often have soft, mushy shifts that feel disconnected from your driving inputs. A quality manual valve body delivers crisp, authoritative shifts that happen exactly when you command them. This isn’t just about feel – those firm shifts reduce clutch slippage and heat buildup, which translates to longer transmission life under demanding conditions.
From a practical standpoint, the cost savings can be substantial. Many performance enthusiasts go through multiple 4L60E transmissions before finally upgrading to a 4L80E manual valve body setup. When you factor in the cost of repeated rebuilds and the downtime associated with transmission failures, the manual valve body conversion often pays for itself.
The flexibility factor is huge for custom builds. Engine swaps become much simpler when you don’t have to worry about transmission control compatibility. Whether you’re dropping a modern LS engine into a classic muscle car or building a custom off-road rig with a diesel powerplant, the manual valve body adapts to any setup without electronic integration headaches.
Don’t overlook the overdrive advantage either. Unlike stepping back to a TH400, the 4L80E manual valve body maintains that crucial fourth gear for highway driving. You get the best of both worlds: bulletproof performance when you need it and reasonable fuel economy when you’re just cruising.
Types of 4L80E Manual Valve Bodies
Choosing the right manual valve body can make or break your build, so understanding the different options is crucial. The shift pattern is usually the first decision you’ll face: forward pattern or reverse pattern.
Forward Pattern vs Reverse Pattern
Forward pattern valve bodies work like a regular automatic – pull back to go through the gears. Most street-driven vehicles benefit from this familiar operation, especially if multiple drivers will be operating the vehicle. It feels natural and reduces the learning curve for anyone accustomed to standard automatic transmissions.
Reverse pattern flips this around, requiring you to push forward to upshift. While it feels weird at first, there’s a good reason drag racers prefer this setup. In the heat of competition, it’s much harder to accidentally money-shift into a lower gear when you’re pushing forward to upshift. That protection alone has saved countless engines from catastrophic over-rev damage.
Full Manual vs Auto-Shift Options
Full manual valve bodies give you complete control – the transmission only shifts when you move the shifter. This is what serious racers want because shift timing can make or break a run. However, full manual operation requires constant attention and isn’t practical for daily driving unless you enjoy working for your commute.
Auto-shift valve bodies offer the best compromise for dual-purpose vehicles. Put it in drive for automatic operation during daily driving, then switch to manual mode when you want control. This versatility makes them popular with street/strip cars that need to be civilized on the street but aggressive at the track.
Transbrake Capabilities
Transbrake capability adds another dimension for drag racing applications. The transbrake locks the transmission by applying forward and reverse simultaneously, letting you build boost or RPM against a stationary vehicle. It’s like having a built-in line lock for your transmission, and the consistency it provides at the starting line is invaluable for competitive racing.
Competition-Grade Options
Competition-grade units represent the top tier of manual valve body technology. These typically feature billet aluminum construction and precision-machined passages that optimize fluid flow. The price premium is significant, but the performance and durability gains justify the cost for serious applications.
Key Features and Specifications
When shopping for a 4L80E manual valve body, certain specifications separate the quality units from the budget options. Understanding these features helps you make an informed decision that matches your performance goals and budget.
Adjustable Pressure Regulation
Adjustable line pressure is one of the most important features to look for. Quality units typically offer pressure adjustment from 150 to 300 PSI, allowing you to fine-tune shift characteristics for your specific application. Drag cars might run maximum pressure for lightning-quick shifts, while street cars benefit from moderate pressure for smoother operation.
Torque Capacity Improvements
The torque capacity increase varies depending on the valve body design and supporting modifications. Most quality manual valve bodies can handle 600-800 horsepower reliably when installed in a properly built transmission. Competition units with supporting internal upgrades can handle even more, but remember that the case and internals still have limits.
Construction Materials
Construction quality makes a huge difference in performance and longevity. Entry-level units typically modify stock castings, which works fine for moderate applications. Billet aluminum construction offers superior strength and allows for optimized port shapes that aren’t possible with casting modifications. The precision machining and material quality of billet units justify their higher cost in demanding applications.
Shift Quality Enhancements
Shift quality improvements come from redesigned hydraulic circuits that provide more positive clutch engagement. The mushy, delayed shifts of electronic transmissions are replaced with crisp, immediate gear changes that feel connected to your inputs. This isn’t just about driver satisfaction – the improved hydraulics reduce clutch slippage and heat generation.
Applications and Use Cases
The versatility of 4L80E manual valve body conversions makes them suitable for virtually any high-performance application, but certain uses really showcase their advantages.
Racing Applications
Drag racing represents the most demanding application for these transmissions. The combination of transbrake capability and precise shift control provides the consistency that separates winners from also-rans. Being able to build boost or RPM against the transbrake ensures optimal launch conditions, while manual shift control guarantees that gear changes happen at exactly the right RPM for maximum acceleration.
Road racing applications benefit from the manual control and enhanced durability. Being able to hold gears through corners and provide engine braking on deceleration gives drivers the control they need for competitive lap times. The improved reliability also matters in endurance racing, where transmission failures can end your race regardless of how fast your car is.
Off-Road and Rock Crawling
Off-road and rock crawling applications showcase the durability and control advantages of manual valve bodies. The ability to select and hold specific gears provides precise control for navigating challenging terrain. Low-range operation with manual control keeps the engine in its torque band while preventing unwanted upshifts that could leave you stuck in the wrong gear at a critical moment.
Street Performance Vehicles
Street performance builds often find auto-shift valve bodies ideal for dual-purpose vehicles. You get automatic operation for daily driving comfort with manual control available when you want to have fun. The increased power handling capability and improved reliability make it an excellent upgrade for modified street cars that have outgrown their stock transmissions.
Heavy-Duty Applications
Heavy-duty truck applications benefit from the increased torque capacity and simplified operation. Work trucks that regularly tow heavy loads or operate in harsh conditions can experience premature transmission failure with complex electronic systems. The manual valve body provides the durability needed for commercial use while eliminating electronic complexity that can be problematic in demanding work environments.
Installation Considerations
Getting a 4L80E manual valve body conversion right requires attention to several critical details that can make the difference between a successful build and an expensive learning experience.
ECM Requirements
The ECM situation varies depending on your valve body choice. Full manual units completely eliminate the need for any computer control, making them perfect for engine swaps or builds where electronic integration isn’t possible. Auto-shift units may require minimal ECM communication, but it’s typically much simpler than stock electronic control requirements.
Compatibility Considerations
Model year compatibility matters more than many people realize. Early 4L80E transmissions (1991-1995) have subtle differences from later units (1996+) that affect valve body compatibility. Make sure you’re getting the right valve body for your specific transmission to avoid installation headaches and performance issues.
Supporting Modifications
Supporting modifications often determine the success of your conversion. A quality torque converter matched to your engine’s characteristics and intended use is crucial. The stall speed should complement your engine’s power band and your driving style. A deep transmission pan can provide additional cooling capacity and fluid volume, though many modern valve bodies work fine with stock pans.
Professional vs DIY Installation
Professional installation versus DIY depends on your experience level and available tools. While the valve body swap itself isn’t rocket science, it often coincides with a complete transmission rebuild. This is your opportunity to upgrade clutches, bands, and other internal components to match the valve body’s capabilities. Professional builders ensure proper clearances and specifications are met.
Performance Expectations and Real-World Results
Setting realistic expectations helps ensure satisfaction with your 4L80E manual valve body conversion. Understanding what the modification can and cannot do prevents disappointment and helps you make informed decisions about supporting modifications.
Shift Quality Improvements
The shift quality improvement is immediately noticeable and often exceeds expectations. The soft, sometimes delayed shifts of electronic transmissions are replaced with firm, decisive gear changes that happen exactly when commanded. This improved shift feel isn’t just about driver satisfaction – the reduced clutch slippage and heat generation contribute to longer transmission life.
Durability Benefits
Durability improvements extend well beyond eliminating electronic components. The enhanced hydraulic design of quality manual valve bodies provides better clutch apply characteristics and more consistent pressure regulation. Many users report significantly longer transmission life compared to stock electronic systems, especially in modified vehicles that exceed original design parameters.
Power Handling Capabilities
Power handling capabilities see substantial improvement, though the basic transmission case and internals remain the limiting factors. Properly built 4L80E transmissions with quality manual valve bodies reliably handle 600-800 horsepower, with competition builds capable of even higher power levels when combined with appropriate internal upgrades.
Maintenance and Longevity Tips
Proper maintenance maximizes the service life and performance of your 4L80E manual valve body conversion. While these transmissions are inherently durable, following basic maintenance guidelines ensures optimal operation and prevents premature wear.
Service Intervals
Service intervals typically follow conventional automatic transmission guidelines, with fluid and filter changes every 30,000-50,000 miles for street applications. Racing applications require more frequent service – many competitors change fluid after every event or season depending on usage intensity. The absence of electronic components eliminates some failure points, but mechanical maintenance remains crucial.
Fluid Requirements
Fluid quality deserves special attention in manual valve body applications. High-quality automatic transmission fluid designed for performance applications provides better protection under the increased pressures and temperatures common in these systems. Synthetic fluids offer superior temperature stability and protection characteristics that justify their higher cost in demanding applications.
Regular Maintenance Tasks
Regular maintenance tasks include periodic inspection of shifter linkage and adjustment as needed for precise gear engagement. Keep the transmission cooler clean and inspect for proper airflow. Address any external leaks promptly to prevent fluid loss and contamination. Monitor shift quality regularly – changes in shift feel can indicate developing issues before they become major problems.
Conclusion
The 4L80E manual valve body conversion represents one of the most effective transmission upgrades available for performance enthusiasts. By combining the proven durability of the 4L80E platform with the simplicity and control of manual operation, this modification addresses the reliability and performance limitations that plague many electronic transmissions in modified vehicles.
For racing applications, the precise control and bulletproof reliability make it an obvious choice. The ability to control shift timing, utilize transbrake features, and eliminate electronic failure points provides the competitive advantage that serious racers demand. Off-road enthusiasts benefit from the enhanced durability and precise gear control that manual valve bodies provide in challenging conditions.
Street performance applications find particular value in auto-shift valve body configurations that provide automatic operation for daily driving with manual control available when desired. The increased power handling capability and improved reliability make it an excellent upgrade for modified street vehicles that have outgrown their stock transmissions.
Success with a 4L80E manual valve body conversion depends on careful component selection, proper installation, and consistent maintenance. The investment in quality components and professional installation typically pays dividends in improved performance, enhanced reliability, and extended service life. For enthusiasts seeking to maximize their transmission’s potential while maintaining overdrive capability, the 4L80E manual valve body conversion remains one of the most proven and effective upgrades in the performance transmission market.
