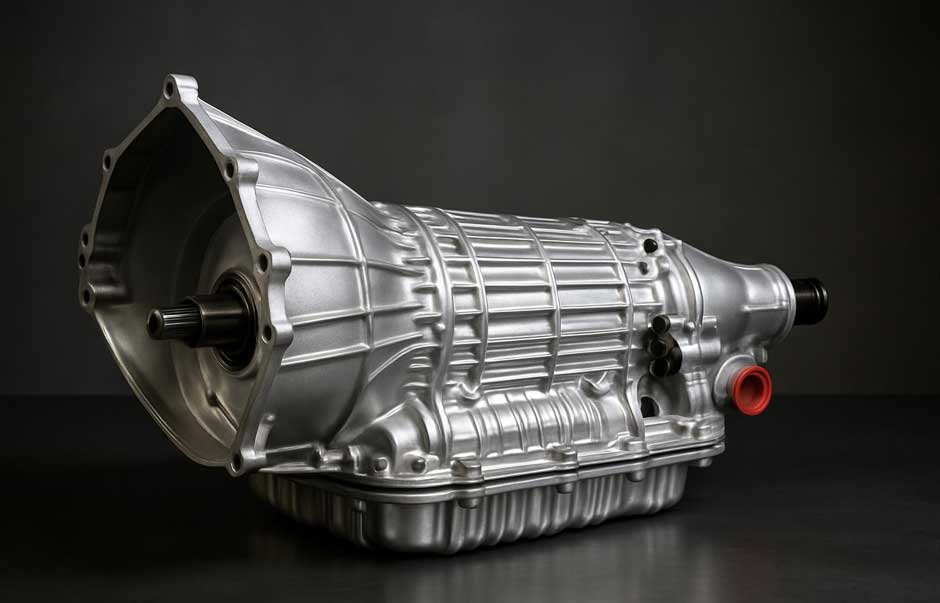

If you’ve spent any time around classic cars or hot rods, chances are you’ve heard someone mention the 200R4 transmission. This GM four-speed automatic has quietly become one of the most sought-after overdrive transmissions in the enthusiast community, and for good reason. Whether you’re building a street rod, restoring a muscle car, or just trying to make your weekend cruiser more highway-friendly, the 200R4 might be exactly what you’re looking for.
What Makes the 200R4 Transmission Special?
Back in 1981, when gas prices were climbing and the government was breathing down Detroit’s neck about fuel economy, General Motors needed a solution. Enter the 200R4 transmission – officially called the Turbo Hydra-matic 200-4R. This wasn’t just another automatic transmission; it was GM’s first real attempt at giving drivers the convenience of an automatic with the fuel-saving benefits of overdrive.
Now, I’ll be honest with you – when the 200R4 first hit the scene, a lot of gearheads were skeptical. The earlier 200 three-speed had earned a pretty rough reputation for reliability, and many folks figured this new four-speed would follow the same path. Boy, were they wrong. GM had learned from their mistakes, and the 200R4 turned out to be a completely different animal.
What really caught people’s attention was how versatile this transmission was. You could find it behind everything from the family-friendly Buick V6 to the fire-breathing turbocharged engines in the Grand National. That kind of flexibility doesn’t happen by accident – it’s the result of smart engineering and careful attention to detail.
The real game-changer, though, was that overdrive gear. Picture this: you’ve got a classic Camaro with 3.73 gears that sounds amazing at idle but screams like a banshee at 70 mph. Drop in a 200R4, and suddenly you can cruise the interstate at 2,000 RPM instead of 3,500. Your ears will thank you, your wallet will thank you, and your engine will last a lot longer.
200R4 Transmission Specs That Actually Matter
Let’s talk numbers, but I’ll skip the boring stuff and focus on what really matters when you’re planning a build. The 200R4’s gear ratios are pretty sweet: 2.74:1 in first gear gives you solid launch characteristics, while that 0.67:1 overdrive ratio drops your cruise RPM by about a third. That’s the difference between comfortable highway driving and white-knuckle endurance tests.
Here’s something that’ll make your life easier: the 200R4 is almost exactly the same length as a TH-350. We’re talking about 27.75 inches overall, which means if your car currently has a TH-350, the 200R4 will probably fit without major surgery. You’ll need to move the crossmember – the 200R4 mounts at the very back of the tailshaft – but that’s usually a straightforward modification.
The output shaft is another win. It’s got the same 27-spline setup as the TH-350, so your existing driveshaft will likely work without changes. That’s money in your pocket and one less headache during the swap.
One of the coolest features of the 200R4 is its universal bellhousing pattern. Unlike some transmissions that only work with specific engines, the 200R4 will bolt up to Chevy, Buick, Oldsmobile, and Pontiac engines without adapters. This makes it perfect for engine swaps or mixed-brand builds that would otherwise require expensive adapter plates.
How the 200R4 Stacks Up Against the Competition
The eternal debate in the overdrive automatic world usually comes down to 200R4 versus 700-R4. I’ve worked with both, and honestly, they’re both solid choices when built properly. The real differences come down to specific application needs rather than one being dramatically better than the other.
The 200R4’s biggest advantage over the 700-R4 is that universal bellhousing I mentioned earlier. If you’re working with anything other than a Chevy engine, the 200R4 is often your only bolt-in option. The 700-R4 was designed specifically for Chevrolet applications, which limits its versatility.
Here’s something that might surprise you: the 200R4 will shift into overdrive under full throttle, while most 700-R4s won’t. That means you can hammer the gas and still get that overdrive gear for maximum performance. Only the late Corvette 700-R4s had this feature from the factory, and modifying earlier units to do this isn’t always straightforward.
Compared to the old TH-350, the 200R4 is a no-brainer for most applications. You get the same basic dimensions and output shaft, but with an extra gear that transforms highway driving. I’ve driven plenty of cars with TH-350s and deep gears – trust me, the constant engine noise gets old fast. The 200R4 fixes that problem without giving up any of the TH-350’s reliability.
Installing a 200R4: What You Need to Know
I won’t sugarcoat it – installing a 200R4 isn’t quite as simple as swapping in another TH-350, but it’s not rocket science either. The biggest challenge is usually the crossmember modification, since the 200R4 mounts differently than most older transmissions.
The good news is that the transmission will physically fit in most cars that currently have a TH-350 or Powerglide. The length is nearly identical, so tunnel clearance usually isn’t an issue. You’ll need to fabricate a new crossmember mount or modify your existing one, but this is well within the capabilities of most home builders or any decent exhaust shop.
Electrical connections are where things can get interesting. If you’re using a lockup converter (which most 200R4s have), you’ll need to provide a 12-volt signal to engage the lockup clutch. This can be as simple as wiring it to your brake light switch, though some builders prefer more sophisticated control systems.
The TV cable – that’s the throttle valve cable – is absolutely critical for proper operation. This isn’t like the kickdown cable on older transmissions; it actually controls line pressure and shift timing. Get this adjustment wrong, and you’ll either have harsh shifts that break parts or soft shifts that burn up clutches. Take the time to get it right, or pay someone who knows what they’re doing.
Building a 200R4 for Performance
Stock 200R4 transmissions are surprisingly capable. I’ve seen factory units handle 400+ horsepower without breaking a sweat, which covers a lot of street performance builds. But if you’re planning something more serious, there are some excellent upgrade options available.
The holy grail of 200R4s are the units that came in 1986-87 Buick Grand Nationals and T-Types. These transmissions got special valve bodies, larger boost valves, and improved servos from the factory. Look for transmission codes like BQ, OZ, CZF, KZF, or BRF – these are the ones you want for performance builds.
Professional builders can take a 200R4 well beyond its factory limits. I’ve seen properly built units handle 600-700 horsepower reliably. The key is addressing the known weak points: upgrading the pump to a 10-vane hardened unit, strengthening the forward clutch housing, and using performance clutch packages throughout.
Torque converter selection makes a huge difference in how the transmission performs. While the factory lockup converters work fine for stock applications, performance builds usually benefit from smaller, non-lockup converters. These are lighter, offer better stall speed options, and eliminate the complexity of the lockup system.
Common 200R4 Problems and How to Avoid Them
Every transmission has its weak spots, and the 200R4 is no exception. The most common failure point is the forward clutch housing splined shaft. This component can break under high stress, usually resulting in complete loss of forward gears. The good news is that this failure is often preventable with proper tuning and reasonable shift programming.
Pump problems are another common issue, especially in high-mileage units. The factory pump can wear out over time, leading to poor shift quality and eventual failure. Symptoms include delayed engagement, soft shifts, and slipping. The solution is usually a pump rebuild or upgrade to a performance unit.
Regular maintenance goes a long way toward preventing problems. The 200R4 uses a distinctive 16-bolt oil pan with 13mm bolts – make sure you use the right gasket and torque specs when changing fluid. Use the correct transmission fluid (Dexron III or equivalent), and don’t let the fluid get dark and burnt.
Shopping for a 200R4: Buyer’s Guide
Finding a good 200R4 can be challenging, but knowing what to look for helps. The best units come from specific applications – those Grand National transmissions I mentioned earlier are worth seeking out, even if they cost more. Any 1986-88 unit is generally a good choice, as these got most of the important updates.
When looking at used transmissions, pay attention to the fluid condition and external appearance. Clean, red fluid is good; dark, burnt-smelling fluid is bad. Look for leaks around the pan, pump, and case seams. The transmission should shift smoothly through all gears without slipping or harsh engagement.
Expect to pay anywhere from $300-800 for a decent used core, with the desirable performance units commanding premium prices. Rebuilt transmissions typically run $1,200-2,500, while full performance builds can exceed $3,000. It sounds like a lot, but consider that a properly built 200R4 can last for decades with proper care.
Why the 200R4 Still Matters Today
After more than 40 years, the 200R4 remains relevant because it solves real problems that enthusiasts face. It’s compact enough to fit in classic cars, versatile enough to work with different engines, and capable enough to handle serious power when built properly. The extensive aftermarket support means parts are available, and plenty of shops know how to work on them.
For anyone building or restoring a classic car, the 200R4 offers a perfect balance of modern convenience and period-appropriate technology. It’s not so modern that it looks out of place, but it’s advanced enough to make your car genuinely enjoyable to drive on today’s roads.
The bottom line is this: if you want overdrive in your classic car without the complexity of modern computer-controlled transmissions, the 200R4 is probably your best bet. It’s proven, reliable, and capable – everything you want in a performance transmission. Just make sure you get a good one, install it properly, and maintain it well. Do that, and it’ll serve you faithfully for years to come.
